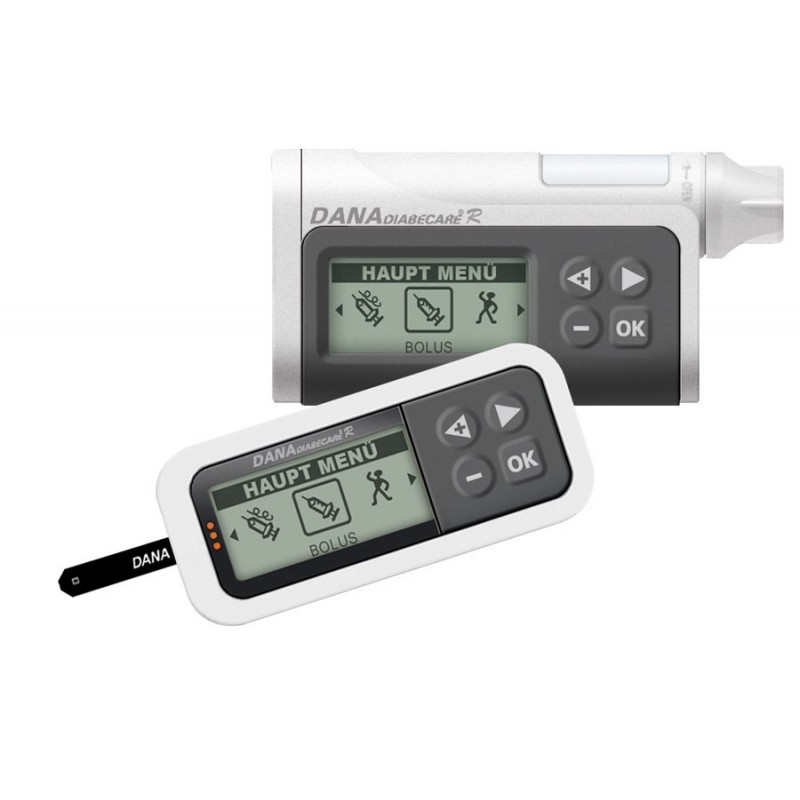

DANA Diabecare R insulin pump and remote control

1474651

New product

Data sheet

Memory 500 Bolus quantities
Color white
Reservoir volume 3
Insulin vials Finished Reservoirs, ampoules, or self-filled
Basal programs Basal Rate Profiles
Waterproof IPX 8 (2
Blood glucose measuring device integrated Yes

More info

DANA Diabecare R

  • remote control with a built-in blood glucose meter
  • size insulin pump: 75 x 45 x 19 mm (the smallest mobile insulin pump)
  • size of remote control: 75 x 32 x 20 mm
  • weight of pump: 55 g (lightest mobile insulin pump)
  • weight remote control: 43 g
  • data transfer via Bluetooth
  • Diabetes Management Software for PC
  • Including Vibration,
  • water protection class: IPX 8 (2.4 m over 24 h)
  • storage of the last 4000 events
  • measuring time: 5 seconds
  • warranty: 4 years
  • operation: Simple menu guidance (symbols + terms)
  • battery: 3.6 V DC (approx. 5-6 weeks)
  • Motor: Swiss Micro DC
  • storage: 500 Bolus volumes, Bolus-average values, total Daily insulin amounts, Reservoir-filling quantities, Infusion Set filling quantities, carbohydrate quantities, blood sugar readings, Alarm messages, and stop/start times
  • Reservoir: 3.0 ml (300 IU)

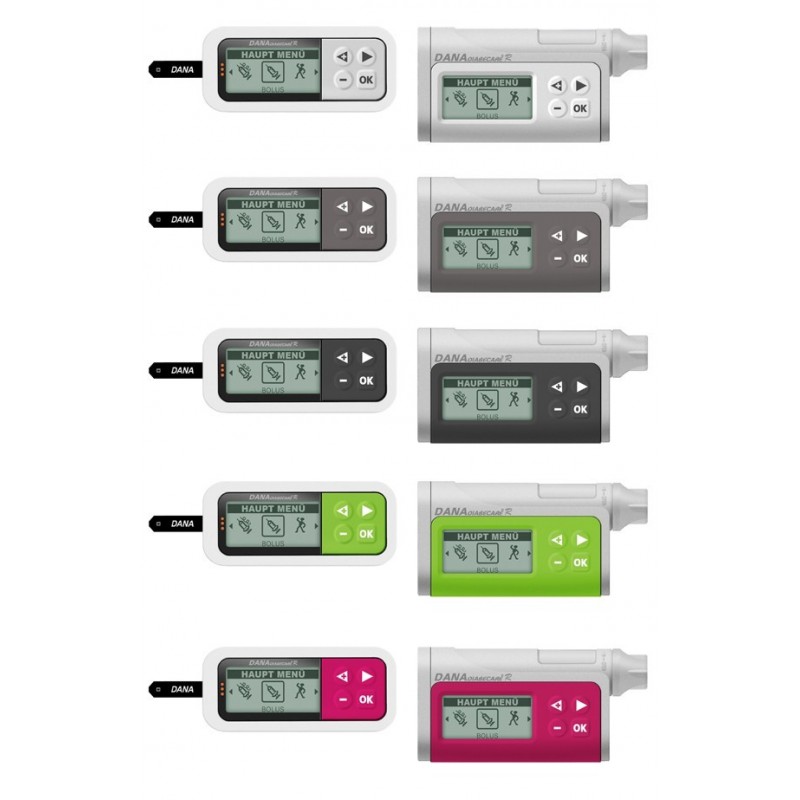

  • colors: White, Anthracite, Black, Green, Pink
  • Water-proof: protection class IPX 8 (insulin pump)
  • Display: power saving mode, illuminated, multi language
  • Basal rate Profiles: 4 (individually adjustable)
  • 0.1 IU/h and 0.01 IU/h Gradation
  • injection every 4 minutes
  • 24 basal rates per day
  • temporarily change to +/- 100 % in 10 % increments up to 24 h
  • Bolusprogramme:
    • pre-adjustable bolus amounts for Breakfast, lunch and dinner
    • single-step-Bolus
    • Dual-Bolus
    • delay Bolus
    • 0,05 IU / 0,1 IU / 0.5 IU and 1.0 IU Gradation
    • Bolus Calculator (incl. Calculation of the active insulin amount)
  • keypad lock to prevent unintentional operation
  • 25 different menu languages
